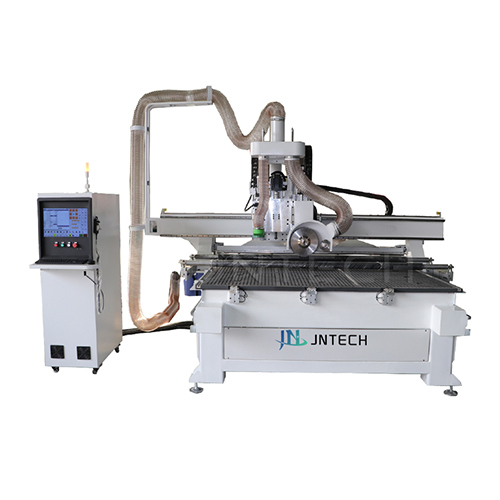

Dual Head CNC Router Wood Machine

Get a Price/Quote

Dual Head CNC Router Wood Machine Specification

Product Type
Dual Head CNC Router Wood Machine

General Use
Wood cutting, engraving, and shaping

Material
Mild Steel & Aluminum Alloy Structure

Type
CNC Router

Capacity
Two different jobs on one machine (dual head)

Weight (kg)
1850 kg

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
No

Power Source
Electric

Power Consumption
4.5 kW per head

Rigidity
High rigidity solid steel structure

Voltage
380V 10% / 50Hz (customizable)

Motor
Stepper/Servo Motor (Optional)

Table Size
1300 mm x 2500 mm

Spindle Speed
18000 rpm

Axial Choice
XYZ axes

Dimension (L*W*H)
3100 mm x 1900 mm x 1550 mm

Feature
Dual independent or synchronous operation, heavy-duty frame, high-efficiency

Color
Blue and White

Supported File Format
G-code, DXF, PLT

Software Upgrade
Supported

Repeatability
±0.02 mm

Protection System
Overload and Emergency Stop

Spindle Power
6 kW x 2

Controller Display
LCD Interface

Applicable Materials
Wood, MDF, Acrylic, PVC, Plastic, Aluminum

Lubrication
Automatic central lubrication system

Compatible Software
ArtCAM, Type3, JD Paint

Guide Rail Type
Linear guide rails

Drive System
Rack and pinion drive

Max Cutting Thickness
80 mm

Operation Temperature
-5°C to 45°C

Control System
DSP / Mach3 / NC Studio

Cooling Mode
Water-cooled Spindle

Travel Speed
Up to 35000 mm/min

Dust Collector
Optional

Transmission Type
Helical Gear Drive

About Dual Head CNC Router Wood Machine

Introducing the new release Dual Head CNC Router Wood Machineengineered for redoubtable performance in woodworking. Get unmatched precision with potent dual 6 kW spindles and heroic travel speeds up to 35,000 mm/min. Its rack-and-pinion drive and helical gear transmission guarantee high repeatability (0.02 mm) and rigidity thanks to the solid steel frame. Featuring advanced DSP/Mach3/NC Studio control systems, LCD interface, automatic lubrication, and water-cooled spindles, this machine offers superior efficiency. Access state-of-the-art compatible software, safety systems, and customizationmaking it the premier choice for intricate wood and material processing.

Exceptional Construction, Features & Application Surface

With high-rigidity solid steel and aluminum alloy structure, the Dual Head CNC Router Wood Machine is built to endure intensive use. Its heavy-duty frame houses dual independent or synchronous spindles, supporting both bulk production and versatile, multi-material engraving. It easily handles wood, MDF, acrylic, PVC, plastic, and even aluminumdelivering outstanding results for cutting, engraving, and shaping. Innovative features like linear guide rails, water cooling, and automatic lubrication ensure long-lasting reliability and accuracy.

Sample Availability, Delivery & Export Facilitation

Sample orders of the Dual Head CNC Router Wood Machine are available on request. On receipt of a confirmed purchase order, samples are prepared and securely delivered via preferred FOB ports for international clients. Committed to seamless export market operations, our sample policy ensures buyers can evaluate the products capabilities firsthand before bulk orders. We support efficient global deliveries, prioritizing client satisfaction at every transaction stage.

FAQs of Dual Head CNC Router Wood Machine:

Q: How does the Dual Head CNC Router Wood Machine improve productivity in woodworking applications?

A: The machine can operate its two heads independently or in sync, enabling users to process different jobs simultaneously or double output for identical tasks, making large-scale production much more efficient.

Q: What types of materials can this CNC router process effectively?

A: It is engineered for high-precision work on wood, MDF, acrylic, PVC, plastic, and aluminum, offering versatility across a wide range of signage, cabinetry, and furniture-making applications.

Q: Where can I use compatible software for controlling and designing jobs on this CNC router?

A: The machine seamlessly integrates with popular design software such as ArtCAM, Type3, and JD Paint, ensuring extensive compatibility for various file types including G-code, DXF, and PLT.

Q: What safety features does the Dual Head CNC Router offer during operation?

A: It is equipped with an overload protection system and an emergency stop function, safeguarding users and ensuring the machine halts immediately in hazardous scenarios.

Q: How does the machine maintain precision and reliability during prolonged operation?

A: The automatic central lubrication system and water-cooled spindles keep components optimally maintained and temperature-controlled, reducing downtime and wear for consistent and reliable operation.
